Brand Name : HAISEN
Model Number : HD409VRH
Certification : FCC UL TUV SAA RED CE RoHS
Place of Origin : China
MOQ : 100PCS
Price : Negotiable
Payment Terms : L/C, T/T, Western Union
Supply Ability : 100,000pcs Per Month
Delivery Time : 1-3 days for sample order, 1-2 weeks for bulk order
Packaging Details : Bubble pack, paper flat, outer carton.
Apperance color : White or Black
Mounting height : Max.15m/49.2ft
Microwave frequency : 5.8GHz ± 75MHz
Detection range : Max.ø16m/52.48ft
Operating voltage : American version:120-277VAC,Europe version:12-240VAC
Lifetime : 50000 hours
IP rating : IP65
Application : Tri-proof light/Battenlight/UFO Highbay light
Detection distance : diameter 16m/52.48 max.
Function : Bluetooth networking and can be control by HAISEN APP

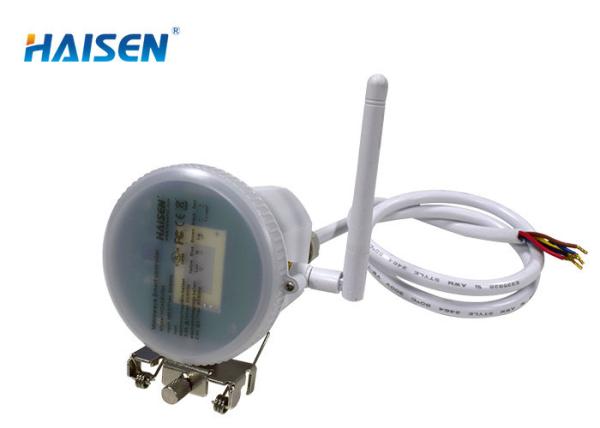

High Frequency 5.8GHz BLE Motion Sensor Microwave Movement Detector
Outside of light fixtures bluetooth networking HAISEN APP control microwave motion sensor
Features:
Europe version:brown L in;blue N;yellow L out;black1-10v-;red1-10v+.
Specifications
Operating temperature | American version | -35℃-+60℃ |
Europe version | -35℃-+55℃ | |
Operating voltage | American version | 120-277VAC,50Hz/60Hz |
Europe version | 120-240VAC,50Hz/60Hz | |
Switching capacity | American version | 3.0A@120Vac,50/60Hz,2.0A@277Vac,50/60Hz |
Europe version | Incandescent lamp:Max.800W@120-220Vac,Max.1000W@220-220Vac; Control gear:Max.400W@220-240Vac,Max.800W@220-240Vac | |
Stand-by power | ≤1.5w | |
Detection area | 25%/50%/75%/100% | |
Hold time | 5s/30s/1min/3min/5min/10min/20min/30min | |
Daylight threshold | 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable | |
Stand-by period | 0s/10s/30s/1min/5min/10min/30min/+∞ | |
Stand-by dimming level | 10%/20%/30%/50% | |
Microwave frequency | 5.8GHz±75MHz | |
Microwave power | <0.3mW | |
Control line | American version | black L in;white N;red L out;gray1-10v-;purple1-10v+ |
Europe version | brown L in;blue N;yellow L out;black1-10v-;red1-10v+ | |
Mounting height | Max.15m/49.2ft | |
Detection range | Max.Ø16m/52.48ft | |
IP rating | IP 65 | |
Detection angle | 30°-150° | |
Safety standard | EN61347-1 EN61347-2-13 EN60598-1 |
ON/OFF Daylight sensor Detection area Hold time Warranty 5 years Remote control
Stand-by period Stand-by dimming 10-15m Highbay APP Control Bluetooth
level networking
Dimensions:
There are four versions of sensors for different lamps.
Version A:
Version B:
Version C:
Version D:
Installation method
Clip to the edge of the lamp
Ceiling mounted
Wall-mounted installation
Make a small hole in the side of the lamp and reveal the sensor
Wiring Diagram:
American standard:Black L,White N,Red L',Gray 1-10V-,Purple 1-10V+.
Europe standard:Brown L in;Blue N;Yellow L out;Black1-10v-;Red1-10v+
Detection coverage:
Max. detection range will be 16m/52.48ft for ceiling mounted.
![]() |
